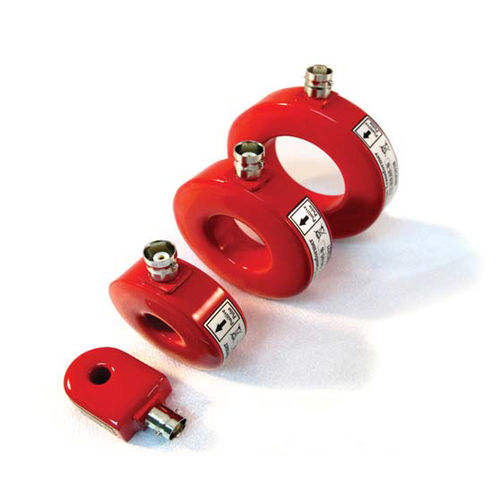

环形电流传感器HFCT系列

AC. DC. 坚实的核心

高频电流互感器Magnelab高频电流互感器（HFCT） - 设计为提供单个或重复双极或单极脉冲的非常精确，不接触，不具有破坏性测量。此外，它含有固体环形芯，将测量200至20,000个AMPS DC或2至71AMPS AC的输入范围。它配有1/4到2英寸的开口尺寸。此外，它的电压输出范围为0.025至5.0 V / a。它还适用于连续波。宽频响应本系列中的AC电流传感器测量距离Microampers的电流高达20,000安培。这些是宽频响应CT，可从0.5 Hz到500 MHz运行。该设备有五种不同的尺寸，您将在SMA或BNC连接器类型之间进行选择。另一种高精度CT是HT-300M Hall效应电流换能器。这具有快速的响应，并提供3 kV的耐压。 Unlike the HFCT, which measures AC current, the HT-300M measures DC current of up to 300 amperes. High Sensitivity The HFCT has a very high frequency cutoff, which ensures that fast transients can be faithfully rendered. Additionally, it has an operating temperature of between minus 20 degrees Celsius and plus 120 degrees Celsius. Its nominal accuracy is also much better, standing at 0.5% that is spread over a wider bandwidth. The Magnelab HFCT is also as much as five times more sensitive to signal measurement at low intensity.
