装Pt100温度探测器3730372

RTD 插入 不锈钢

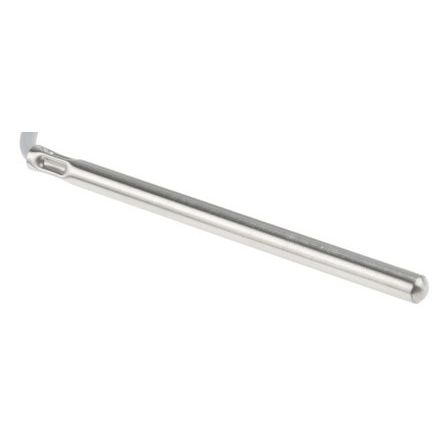

RS Pro General Purpose 2 Wire Pt100 PRT Probe with Silicone Insulation RS Pro General Purpose 2 Wire Pt100 PRT Probe with Silicone Insulation RS Pro General Purpose 2 Wire Pt100 PRT Probe with Silicone Insulation RS Pro General Purpose 2 Wire Pt100 PRT Probe with Silicone Insulation RS Pro General Purpose 2 Wire Pt100 PRT Probe with Silicone Insulation RS Pro General Purpose 2 Wire Pt100 PRT Probe with Silicone Insulation这种RTD探头结构坚固，传感元件包裹在一个坚硬的6mm直径304不锈钢护套中。引线采用耐用且柔软的硅橡胶绝缘。这种铂电阻温度计提供了准确和可靠的温度测量广泛的应用。什么是RTD?RTD是一种基于金属与温度相关性的温度传感器。金属的温度越高，它对电流的阻力就越大。这个电阻可以被测量并转换成温度读数。在Pt100 RTD中，“Pt”代表铂(铂丝或铂膜)，“100”表示温度传感器在0°C时有100欧姆的电阻。铂是最可靠的金属，因为它的线性电阻温度关系在一个大的温度范围。 What is a Pt100 Probe? A Pt100 probe is the most rugged form of RTD. The Pt100 temperature sensor element is mounted inside a metal sheath or probe. This protects it from being damaged by the surrounding environment when it is inserted into the process to be measured. The other end of the probe is terminated by 2 insulated wire tails which are connected to the temperature measuring equipment.
