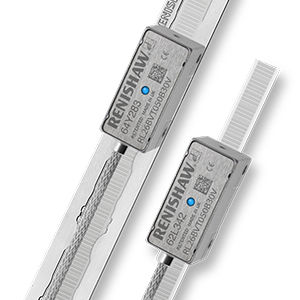

绝对线性编码器Accolute™UHV RTLA30

光学的 IP30.

什么是解决的UHV？坚固的UHV为超高真空应用带来绝对的编码器技术，使客户可以实现更高的吞吐量，降低损坏的风险并提高可靠性。坚决优于为UHV环境设计的所有其他绝对编码器。溶解能够1nm分辨率和高达100米/秒，提供了一种在编码器技术中打破新的地面的规范。什么是rtla30刻度？RTLA30是一种低调的不锈钢磁带秤，具有我们的30μm间距绝对尺度代码。它准确到±5μm/ m，长度可达21米。有两种安装选项可用，两者都允许独立的热膨胀和磁带比例方便。RTLA30可与革命性的Fastrack™规模运营商系统一起使用。该系统允许轨道快速，轻松地铺设，无需固定孔。 A sacrificial spacer is removed and the tape scale is then fed into the track. RTLA30-S is laid onto the substrate with self-adhesive backing tape. The self-adhesive is formulated in such a way that it allows for independent scale expansion to that of the substrate. To complete the installation, both types of scale are clamped at one point to provide a datum position.
