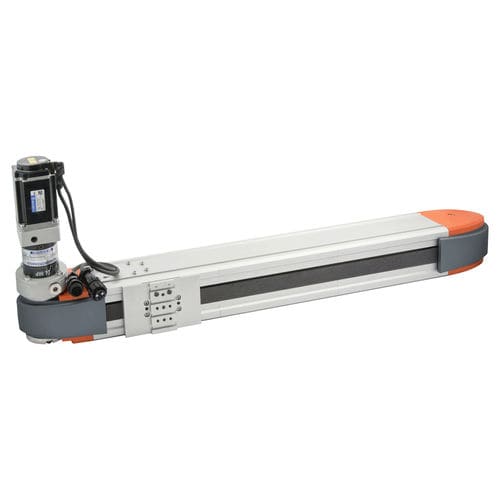

电动缸Elektro Shak系列

罗兹 皮带驱动 阳极氧化铝

带驱动的无杆电动缸，具有V型锁式界面。气缸结构具有坚固的阳极氧化铝挤压型材，以确保最佳刚性。提供典型的V锁套尾部（无凹槽），以便使用QS元素易于安装。具有燕尾榫和标准凹槽的V锁界面安装在移动板上，以使用K或QS元件固定其他部件。通过沿插入挤压轮廓的硬化和钢化导向器运行的可调节脚轮移动，滑动滑块移动，以获得具有可调节间隙的刚性系统。引导润滑乳头也安装在滑板上。载玻片由加强带驱动，该带式带又通过键控在电动机上的皮带轮操作;机械皮带张紧系统安装在气缸上。可以使用不同的驱动器，无刷和踩。带无刷电机的版本可以配备1：3速度变速箱，当您想要充分利用可用扭矩时。 In addition to the standard drives included in the catalogue, custom cylinder can also mount other types of motor. The homing position is identified by a inductive sensor included in the supply.Two different size are available, SHAK 340 and SHAK 470, with pre-set standard strokes. For each size it is possible to choose side on which to mount the motor (4 positions). A version with a smooth tree-type output, mounted in a pre-set position, is also available. The SHAK cylinder can be mounted both horizontally and vertically.
