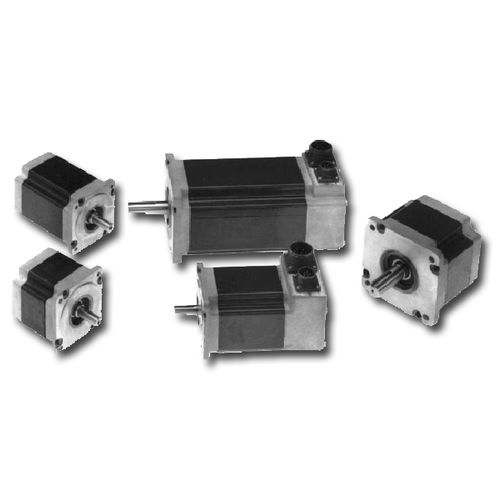

混合步进电机PowerPac®K系列

三期 崎岖 IP65.

PowerPAC®混合动力步进电机在较小的包装中提供更多功率。这些坚固的NEMA 34和42（90和110mm）电机将最佳磁铁与大直径转子和创新的转子定子设计相结合，以产生更多的扭矩和更光滑的微步进。K系列融合了Flux-FocusingSigmax®技术，可提高加速度，扭矩增加25％。Features • Wide range of standard options • Affordable co-engineered modifications with a short lead time to meet unique application requirements • N3 models, NEMA 34 (90 mm) motors are available in 4 stack lengths with torque ratings from 3.2 to 15.4 N-m (454 to 2,180 oz-in) nominal holding torque. • K3 models, NEMA 34 (90 mm) motors are available in 4 stack lengths with torque ratings from 4.08 to 19.7 N-m (578 to 2,790 oz-in) nominal holding torque. • N4 models, NEMA 42 (110 mm) motors are available in 3 stack lengths with torque ratings from 8.12 to 30.8 N-m (1,150 to 4,365 oz-in) nominal holding torque. • K4 models, NEMA 42 (110 mm) motors are available in 3 stack lengths with torque ratings from 10.4 to 40.3 N-m (1,470 to 5,700 oz-in) nominal holding torque. • Extensive selection of shaft configurations, terminations, windings and co-engineered modifications to suit your application needs, time frame and budget • Speeds up to 3,000 rpm meet the velocity demands of most high-torque applications • Improved torque linearity (above rated current) provides high peak torque to boost acceleration in intermittent-duty applications • High torque at moderate speeds to enable a cost-effective alternative to servo motors
