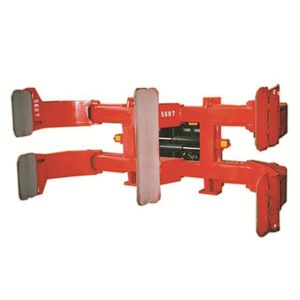

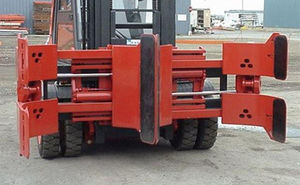

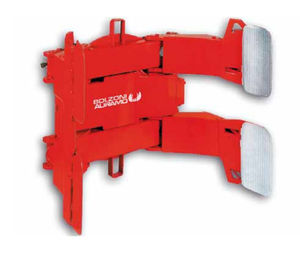

Paper roll materials handling clampAR-25 series

paper roll materials handling clamp
paper roll materials handling clamp
paper roll materials handling clamp
paper roll materials handling clamp
paper roll materials handling clamp
paper roll materials handling clamp
添加到收藏夹”
Compare this product
Go to the BOLZONI S.p.A. website for more information

Characteristics

Product applications
for paper rolls

Description

For handling of small and medium size rolls in paper mills, warehouses and printing houses. Range: 1700 Kg - 2500 Kg Plus: • Rotating paper roll clamp for safe and effective vertical and horizontal roll handling. • Slim and smooth arm and frame design, optimal visibility and advanced hydraulic operation. • Pivoting arm movement. Short and long arms. Non-split long arm for single roll handling. Split arm for 1 - 2 roll handling. • 180-degree rotation. Hydraulic cushioning in the vertical end positions. • All hydraulic functions protected with built-in pressure relief valves and check valves. All service and maintenance points easily available. Notes: • Two hydraulic functions required. • Models AR-25RHF/RJF with fixed (non-moving) short arm. • Models AR-25RH/RJ with hydraulically positionable short arm. • See hydraulic specifications page for pressure and flow rate recommendations. • Standard contact pads: cast pad with high-friction surface. • Minimum 5-degree forward tilt on lift mast is required for horizontal handling. • For 0-degree tilt, special arms are available. Consult Bolzoni. Options: • Special roll ranges. • Arm height D = 1035 mm. • Contact pad options: steel-sprayed, rubber faced, polyurethane faced, full length contact pads.
