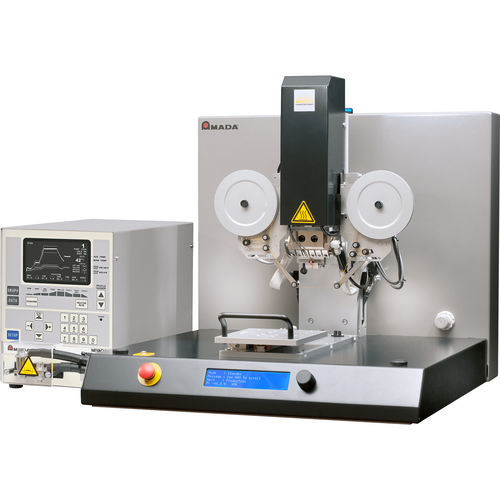

回流悬挂机纽霍森

半自动 数字的 用于电子组件

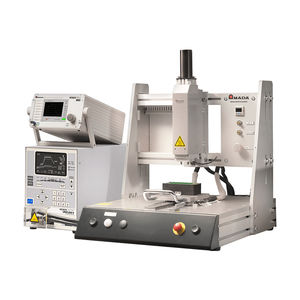

纽霍森Hot Bar Reflow Soldering & Heat Staking System AMADA WELD TECH’s newhorizon pulsed heat hot bar resistance soldering machine is a fully integrated, reflow soldering machine which utilizes a pulsed heat thermode technology for hot bar reflow soldering, resistance soldering, and heat staking applications requiring between 8 and 80 Newtons force (0.82 – 8.2Kgs, 1.8 – 18lbs). The newhorizon line is made up of four standard, ergonomically designed hot bar soldering machine models with optional product handling features such as linear slides and rotary tables. These hot bar resistance soldering systems are “customizable” to suit the customer’s specific technical requirements via optional plug & play modules. All modules are mounted on a robust frame construction. Compact, Standard Systems Uniflow 4 Pulsed Heat Reflow Soldering Power Supply Robust Frame Construction Active Integrated Cooling X-Y Thermode Co-Planarity Adjustment Electronic System Control Pneumatic Bonding Head Digital Force Readout Use with 1NT thermodes Technical Specifications Force Range - 1.79 - 17.98 lb 0.81 - 8.16 kg 8 - 80 N Input Power - 100-240 VAC, 16 A Air - 87- 116 psi Single or 3 Phase - Single Phase Size H x W x D - System: 25.59 in x 24.21 in x 27.36 (650 mm x 615 mm x 695 mm) Power Supply: 18.33 in x 10.0 in x 12.6 in (466 mm x 254 mm x 319 mm) Weight - System: 132.27 lb (60 Kg) Power Supply: 2kVA: 48 lb (21.8 Kg) or 4kVA: 60 lb (27.2 Kg)
