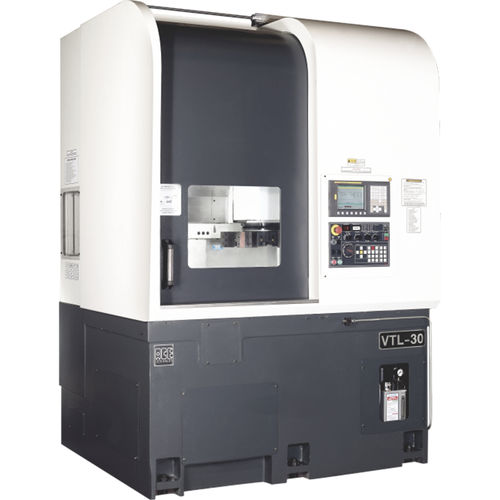

计算机数控车床VTL-30

垂直 两轴 大直径零件

Ace立式车削中心结合了动力、刚性和多功能性，提高了车削能力。广泛的访问卡盘区域，便于装卸零件。X和Z轴上的直线运动导轨确保更好的定位和重复性。该机适用于旋转飞轮、制动鼓、大尺寸齿轮等大型、大直径零件。本机有利于重载部件的装卸。这台机器占地面积比卧式车床小，卧式车床可以转动同等尺寸的零件。筒式主轴在受控的洁净室环境中组装和测试。轴承配置给主轴组件在轴向和径向的刚度非常高。这些轴承都用润滑脂润滑了。一个高扭矩主轴电机提供动力的沉重的库存清除。 Axes X and Z axes feature large diameter precision ground ball screws supported at each end by precision class ball screw support bearings. Ball screws are pre-tensioned to minimize the effect of temperature growth. Heavy duty linear motion guides are widely spaced to ensure stability. Ball screws and LM guides are protected with the help of telescopic covers. Automatic metered lubrication is provided to both LM guides and ball screws. Overload Tripping Clutch Overload trip clutch is provided on both axes to minimise the damage caused in the event of accident. Hydraulic counterbalance is provided for z axis to counter the effect of gravity on slide unit thus ensuring the maximum availability of motor torque for cutting. It also helps to prevent the fall of slide in case of Z axis clutch trip.
