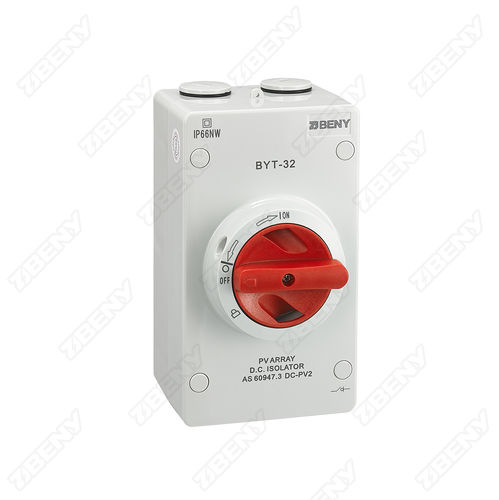

直流隔离器开关BYT-32.

手动的 非融合 用于光伏应用

第一个DC隔离器至60947.3：2018 DC-PV2 DC隔离开关现在必须确认产品符合60947.3：2018的有效符合性证书。该品牌和所有相关型号必须在EESS国家数据库中的负责任供应商注册到负责任供应商，并以监管合规标记（RCM）标记。ZJBENY DC isolator switch BYT-32 is developed for Australia solar market and popular in worldwide, It’s the first DC isolator complies with the newest AS 60947.3:2018 standard, has been classified as Level 3 equipment on the ERAC website, and with Regulatory Compliance Mark. 1200V True DC for solar PV application BYT-32 is the 1200V 32A max true DC isolator switch with IP66/67 enclosure for PV application, installed between the solar arrays and solar inverter, for isolation the PV array during system installation or any maintenance. The switch must be rated for system voltage (1.15 x string open circuit voltage Voc) and current (1.25 x string short circuit current Isc) Thanks to the UV resistance enclosure at IP66 protection degree and flame retardant material, the isolator BYH-32 is reliable and long working life, keeps the solar system safety. Highlight: * The first DC isolator to DC-PV2 * True IP66/67 DC isolator for solar PV application * UV resistance and flame retardant technology * AS 60947.3:2018 standard , AS/NZS IEC 60947.1:2015 * With anti-counterfeit label for original ZJBENY * 5 years warranty and product insurance
