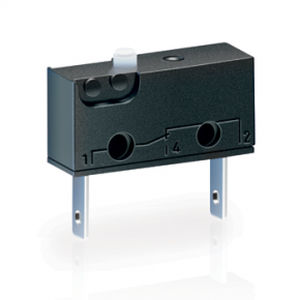

杠杆开关DZ系列

春天 单极 IP40

DIMINIATURE DZ•NC触点上的正断开动作•开关电流高达3（3）A处于250 V AC•可用各种辅助执行器•执行器也可以改装•可能的各种终端类型•根据EN 61058和UL 1054批准•Degree of protection IP40 Technical specifi cations Series DZ ❶ Contact confi guration S.P.D.T., S.P.S.T. - N.C. Contact gap < 3 mm (μ) Switching voltage max. 250 V AC Switching current 3 (3) A Operating voltage max. 220 cN without auxiliary actuator Total travel 1.6 mm Mechanical life Min. 1 x 106 operations Electrical life 25E3 Ambient temperature – 20 to + 85°C Proof tracking index PTI 250 Materials Base/cover PET (UL 94 V-0) Actuator POM (UL 94 HB) Positive break lever LCP (UL 94 V-0) Contacts AgSnO2 Terminals CuZn silver-plated Auxiliary actuator Stainless steel Approvals Degree of protection Switch interior IP40 Circuitry ❸ Model Code S.P.S.T. - N.C. F S.P.D.T. G* Terminal type ❹ Model Code Q.C. terminal 2.8 x 0.5 mm, straight B1* Solder terminal short A1* Auxiliary actuator ❺ Model Code Without auxiliary actuator Radiusform BA
