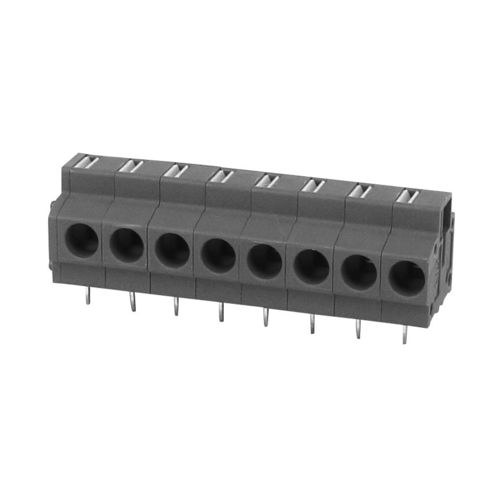

PCB terminal blockHFLS1B series
screwless IEC insulated

添加到最喜欢orites

Compare this product

Go to the Xiamen Hongfa Electroacoustic Co.,Ltd. website for more information

Characteristics

Mounting: for PCB
Connection: screwless
Other characteristics: IEC, insulated
Current: 5 A, 8 A, 10 A, 17.5 A
Nominal voltage: 250 V, 300 V

Description

HFLS1B-508 Features ● PCB terminal block, using non-screw connector with push button ● Inserting hard wire into installment hole without using tools Detailed parameters Poles - 2~24 Pitch - 5/5.08mm Rated Dielectric Strength - 2200Vac/min Rated Withstand Pulse Voltage - 4kV Ambient Temperature - -40℃~105℃ Insulation Material Type/Insulation Material Group PA/I HFLS1B10-350 Features ● PCB terminal block ● Using non-screw connector with push button ● Inserting hard wire into installment hole without using tools Detailed parameters Poles - 2~24 Pitch - 3.50mm Rated Dielectric Strength - 2200Vac/min Rated Withstand Pulse Voltage - 4kV Ambient Temperature - -40℃~105℃ Insulation Material Type/Insulation Material Group PA/I
