不锈钢软管

聚氨酯 PTFE. 保护

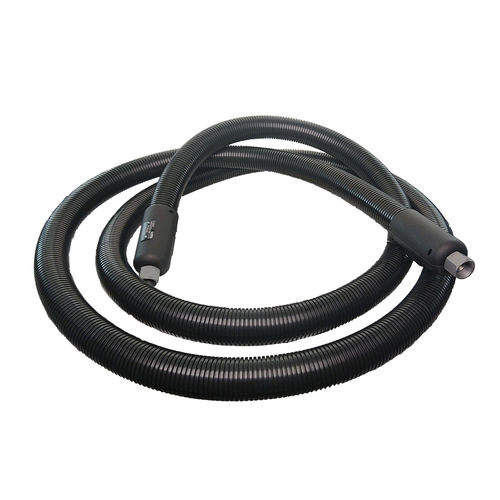

UES Hotmelt软管是热门系统和应用头之间的可靠连接。在标准长度高达9.1米，粘合剂保持在设定温度下，确保光滑的应用。鲁棒软管由PTFE芯组成，具有由不锈钢线编织物围绕的光滑表面。对于所需的连接类型，用基本软管压制相应的配件。任何可能的连接器都可以为此目的附加。加热导体合金和加热元件当然监测VDE生产，确保在整个长度上加热均匀。保极绝缘根据使用条件进行调整。最后，聚酰胺编织套管可靠地防止磨损。UES热熔软管与其他制造商的热熔系统兼容。没有任何问题，可以进行特殊设计。 Please inquire. Properties highly flexible Outer diameter 50 mm Inner diameter (glue core) 8 mm for temperatures up to 200°C pressure resistant up to 200 bar ready for connection to systems of other manufacturers on request For special applications we offer the following variations: Protection class IP65 Optimized for robot applications Durable plastic corrugated hose spring probe Niro-Flex - for high mechanical loads Mini/hand hose with an outer diameter of 32mm and a glue core of 6mm specialized in polyurethane adhesives with exchangeable glue core inside diameter (glue core with stainless steel braiding) from 7 - 13mm
