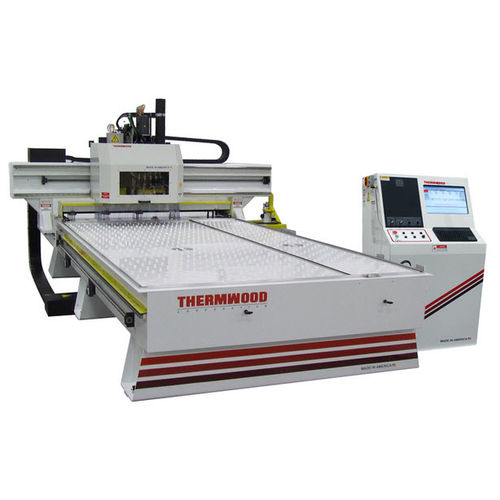

数控路由器Cabinetshop MTR.

3轴 多主轴 木头

完整的三个轴数控路由系统，具有单嵌套底座，复合材料或塑料片材的单线或双线线条。Available Table Sizes: 5'x10' (1.52m x 3m), 5'x12' ( 1.52m x 3.6m), 7'x12' (2.1m x 3.6m), 7'x20' (2.1m x 6m) 12 HP HSD Spindle (3,000-24,000 RPM). Optional 18 HP Spindle Fixed Single Steel High Flow Table with Moving Gantry (MTR 21, MTR 30, MTR 36 and MTR 60) Dual, Fixed Steel High Flow In-Line Tables with Moving Gantry (MTR 30DT) 10 Position Bar Style Automatic Tool Changer (MTR 21 Single Table) 16 Position Bar Style Automatic Tool Changer (MTR 30, MTR 36 and MTR 60 Single Table) 15 Position Bar Style Automatic Tool Changer (MTR 30 DT, Dual In-line Table) At the Head Automatic Tool Changer (Optional) Automatic Tool Length Measurement Three-Dimensional Laser Compensated Axis Alignment Control Nesting Siemens Intelligent Servo Drives Throughout QCore SuperControl Machine Training and Installation
