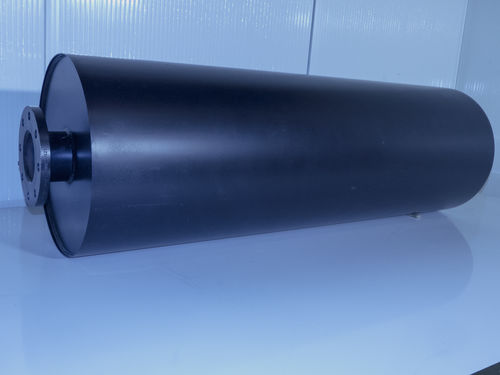

排气消声器SM25

对通风 压力控制 流控制

SM25消声器为吸收式消声器。气体通过一个内衬有高声学效率吸声材料的管道，这种材料由多孔金属片保护。描述公称入口直径完成消声器的命名(p.e. SM25 DN200)。进口和出口管道是轴向的，阀体是钢制的圆柱形，由圆锥形、扁平或泵的底部封闭，这取决于应用。保护消声器采用高温面漆处理。消音器没有提供抵抗温度和压力由于燃料爆炸。消声器可选配以下配件:•法兰和计数器法兰。•一套垫圈和螺钉。•支持。•火花熄灭室。 For special equipment or special situations such as: temperatures above 500 ºC, diameters above 800 mm., Special steels, etc ... please contact us. AVERAGE SOUND DIMMING CURVE Measured under normal operating conditions and once the background noise has been eliminated. (Parasites) According to ISO 6798 standard. ASSEMBLY 1. - SM25 silencers. • The muffler must be mounted on the exhaust pipe. • The direction of flow must be respected. 2. - Expansion compensator. The silencer fixing system must allow its free expansion. DIMENSIONS Length tolerance ± 3 mm. Dimensions in mm. weight in kg. DETERMINATION OF THE NOMINAL DIAMETER OF THE SILENCER
