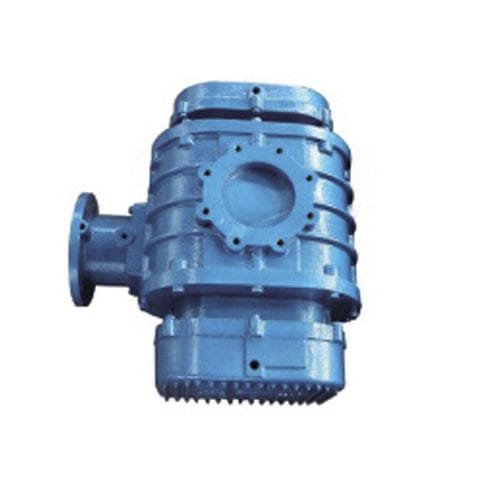

风机DSR125G

气体 根旋转叶 3-lobe

DSR125G罗茨鼓风机为三叶双油箱罗茨鼓风机，采用日本先进技术，其风量为4.64m³/min - 12.23m³/min，压力从63.7Kpa至98Kpa。本公司风机的主要特点是体积小、重量轻、流量大、噪音小、运行稳定可靠。特点1。空气容量和压力可定制2。空气容量稳定，压力变化小。清洁空气不带油潮湿4。5.施工简单，维护方便。轴承均由油润滑润泽6。技术类型-容积式鼓风机设计-正压空气容量- 4.64至12.23 m³/min排气压力- 63.7至98Kpa中性气体输送—无油重量—295kg排放直径—125mm(或定制)部件入口过滤器消声器排放消声器锚定螺栓底座、安全阀、止回阀、排放压力表、柔性连接润滑剂。 Package Fumigation free plywood case Iron case Certificate CE certificate, ISO9001 certificate and SGS certificate. Performance parameters The performance parameters table shows the model, outlet diameter, rotate speed, discharge pressure, air capacity and power of motor. 1. The air capacity and pressure in the tables is in standard suction state. The standard suction state is 20℃ temperature, 1.033 kgf/cm2(101.3Kpa) Standard atmospheric pressure and 65% relative humidity. 2. The air capacity and pressure range of some blower models is repeated, to ensure the service life and low noise, should use the larger model.
