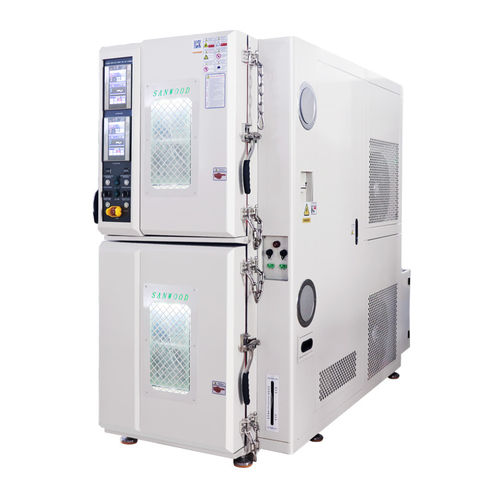

电池试验箱smc - 225 - cc - fb

气候 温度 细胞

锂离子电池温度测试双层测试箱设计，优化了客户实验室的占地面积。我们为电池可靠性和滥用测试提供安全功能。每个环境室的设计都考虑到安全。安全功能可以整合到SANWOOD测试箱中，并针对各种危险级别(0-7)进行定制，以帮助减轻潜在风险。每个试验室根据具体的测试要求而建，可与电池循环器、控制和监控数据采集系统等测试设备相连接，提供完整的集成测试解决方案。试验标准IEC 62133,TIEC 62660-2,SAE J2464,IEC 60086-4,UL 1642,UN 38.3,IEC 61960,UL 2054,IEEE 1625,IEEE 1725。特点-优化客户实验室的占地面积。—内室材质为SUS#304不锈钢，厚度1.2mm。全焊接结构，密封性好，不易开裂。-定制解决方案，最大限度地减少电力消耗。 - The insulation material is made of polyurethane foam with thickness of 100mm. - Fully welded chamber to ensure perfect gas sealing. - The observation window is 4 layers of tempered glass, the size you can choose by yourself. - Both sides of chamber are equipped with a diameter 100mm cable port, the silicon plug is high & low temperature resistance. - Optimized airflow to allow simultaneous testing of as many samples as possible.
