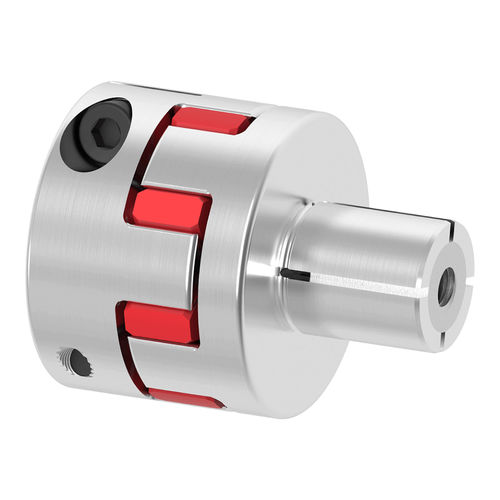

扭转柔性联轴器GWE 5117.

弹性体 颚 对于主轴

弹性体钳联轴器GWE 5117与单狭铝夹紧轮毂的高度紧凑设计的螺杆5117无柔性弹性体耦合以及由钢制成的心轴和内锥形，以在空心轴上摩擦锁定扭矩传递。5不同尺寸的孔径D：4-35 mm（0.157-1.378英寸）外径D：24.5-64.5 mm（0.966-2.539英寸）总长度L：42-82 mm（1.654-3.228英寸）转速Nmax：6,000-15,000 1/min Torque T: 3-160 Nm (2.21 to 118.01 ft·lb) Product Characteristics Your Benefits Backlash-free elastomer jaw couplings of the RINGFEDER® GWE series are the optimum solution for all drive tasks requiring extraordinary positioning accuracy as well as highly effective damping of shocks and vibrations. They effectively compensate for radial, axial and angular shaft misalignments, are axially pluggable, puncture-proof and electrically insulating. The new type RINGFEDER® GWE 5117 is equipped with aluminium clamping hubs as well as an expanding mandrel and inner cone made of steel for friction-locked power transmission on hollow shafts. It is particularly convincing due to: Low masses – thanks to specially optimized hubs made of high-quality aluminum.
