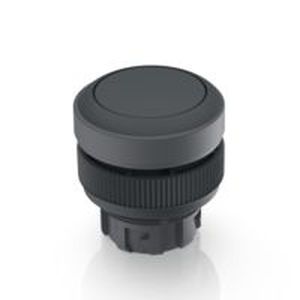

弹簧按钮开关Rafix 22 QR系列

面板安装 瞬间 圆形的

Rafix控制单元是由多个部分组成的模块化单元。在Rafix 22 QR家族中，它们始终由致动元素，耦合和开关元件或光附件，耦合和灯架组成。对于组件，首先将开关元件和灯架持有者捕获到耦合中。然后将此单元捕获到致动元件或信号灯上。要释放，必须驱动刺刀杆。对于Rafix 22 QR致动元素，您可以在两个项圈形状之间进行选择：圆形和正方形。根据标准，安装直径为22.3毫米。如有必要，可以用螺丝刀轻松卸下抗旋转片。应用主要领域•测量控制调节•电气工程•机械和系统工程•车辆构造特殊功能•不透明的边框，不可阐明•通过形状和颜色的不同前环设计适应•稳固的领子•不能扭曲或扭曲或be be在安装过程中丢失。 •1-person mounting: the element is clamped by the seal in the mounting hole, and then can be •screwed from behind. •Coupling with bayonet lever as a safeguard against unintentional release of the switching element •Robust - also suitable for operation with gloves •Degree of protection: IP 65 at the front •Mounting diameter 22.3 mm •Separate switching elements required •Close mounting of actuators (min. 30 x 50 mm) possible, as wiring is axial from behind •Switching elements with silver contacts (max. 400 V) or gold contacts (max. 35 V / 100 mA) •Connection types switching elements: cage clamp, screw connection or plug-in connection
