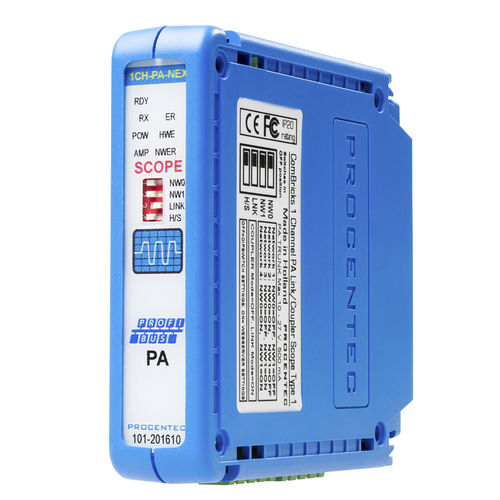

电子耦合器101-201610

光纤 PROFIBUS-DP总线 自动

组合的内部档案和示波器使得该产品非常有用，可在以太网上远程维护。抖动，噪声，直流电流，直流电压，条形图和示波器，它都在那里，易于访问。Free CommDTM允许访问以太网的资产管理工具。Combricks能够携带9 PA链路和RS 485或光纤模块。它也可以是具有其他通信模块的PA模块的定制组合。PA Link在可定制的总线电压下提供500 mA电流。当模块用作电源耦合器时，将自动激活集成的PA终止。它在监控模式下关闭。Combricks Profibus PA链接/耦合器模块它不需要配置并将其与常规Combricks中继器相同的操作。在Web服务器中，可以设置PA侧的行为，如重试（默认5）和看门狗（默认3秒）。 This product can directly replace 3rd party Non-Ex PA couplers/links and can be used as a monitor behind existing 3rd party Non-Ex PA couplers Technical specifications PROFIBUS DP (on the backplane) 9.6 .. 12 Mbps Fully transparent No adjustments required in Link mode Transmission speed detection: 9.6 kbps .. 12 Mbps (including 45.45 kbps) PROFIBUS PA 10 .. 27 VDC customizable PA trunk voltage (Non-Ex) 500 mA trunk current 10 mA current consumption (in all modes) 32 (PROFIBUS PA specifications) 31.25 kbps PA signal 1900 m cable length (depends on trunk current) PA termination automatic (ON in coupler mode)
