液压配件STPC不锈钢过渡配件

气动 适用于天然气 推进

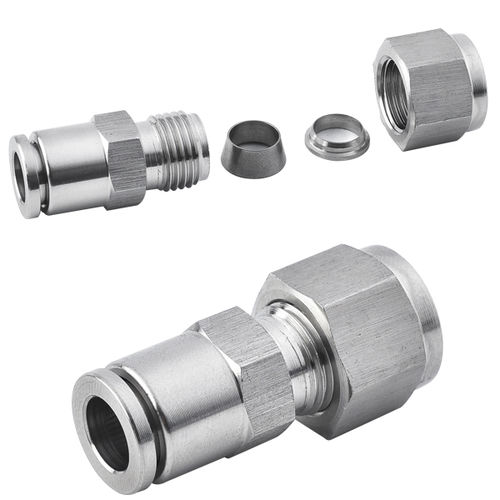

不锈钢过渡配件设计用于将软管连接在一端和金属管上的另一端;一侧是不锈钢推动配件配置，另一侧是不锈钢压缩管配件配置。不锈钢过渡配件用于空气，气动，食品和饮料，化学，医疗和制药系统。它们适用于硬质和软管。它们有一个316不锈钢机身，316不锈钢夹头和FKM（VITON）密封推入拟合端，316不锈钢螺母，背套圈，前套圈在另一端。Pneuflex的不锈钢过渡配件有各种类型，型号和尺寸，以满足各种管道需求，并提供组件之间的基本环节。Designed for use with soft tubing, include polyurethane, polyethylene, nylon, Teflon tubing and hard pipe include stainless steel, carbon steel, copper, titanium, aluminum pipe, Accommodate metric tubing O.D ranging from 4 mm to 16 mm and inch (imperial) tubing O.D from 1/8" to 1/2". Advantages of Pneuflex's stainless steel transition fittings: 1. 316 stainless steel for higher strength and greater corrosion resistance than 304 stainless steel 2. One end is push in fitting configuration, the other end is compression tube fitting configuration 3. Suitable for food and beverage process, paper, petrochemical, pharmaceutical, chemical, medical 4. FKM (Viton) Sealing inside 5. Handle pressures up to 435 psi (30 bar) and an operating temperature range of -20 to +150°C (-4 to +302°F)
