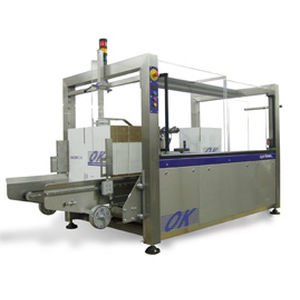

自动案例竖立器Superformer SF1

胶带 对于恶劣环境 精确折叠

Superformer SF1的独特功能包括不锈钢外观，自动壳平方系统，易尺寸的变化，胶带和壳体监测。优点：提高生产效率和灵活性。自动线路和增强化妆品的可靠性。友好友好和可靠性。设置，培训和耐用的完善，优惠食品和其他行业。特点： - 快速且容易尺寸尺寸更改。自动案例方格System.tape和案例监控。框架，在线设计中..Stainless钢制外观。技术规格：案例范围： - 超级大级SF1S 8.00“x 6.00”x 3.00“（Lxwxh）min。200mm x 150mm x 75mm（lxwxh）min。20.00“x 16.00 x 20.00”（lxwxh）max。500mm x 400mm x 500mm（lxwxh）max。- Superformer SF1 8.00“x 8.00 x 6.00”（Lxwxh）min。200mm x 200mm x 150mm（lxwxh）min。24.00“x 20.00”x 24.00“（lxwxh）max。 600mm x 500mm x 600mm (LxWxH)max. - Superformer SF1L 12.00” x 8.00” x 6.00” (LxWxH)min. 200mm x 200mm x150mm (LxWxH)min. 31.50” x 20.00” x 24.00” (LxWxH)max. 800mm x 500mm x 600mm (LxWxH)max. Speed: - Superformer SF1S Up to 15 cases per minute. - Superformer SF1 Up to 13 cases per minute. Servo Option - Up to 20 per minute - Superformer SF1L Up to 9 cases per minute. Taping heads: - OK 55 high quality taping head with open tape feed path, suitable for 2” wide tape (max.) and 14” diameter rolls. Case magazine: - Horizontal, belt driven, indexing magazine, length 40”, 1000mm. Electric: - 400V, 3 Phase, 50Hz standard. Other voltages to requirement. 480V, 3 Phase, 60Hz. Pneumatic: - 80-100 psi(6 - 8 bar), 1/2” supply. Controls: - PLC controls with operator fault finding display.
