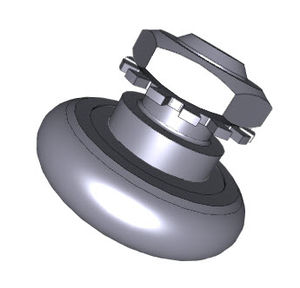

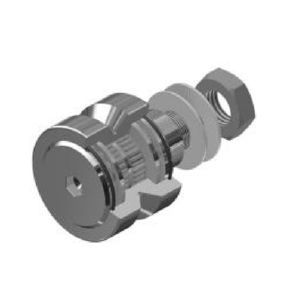

Guide rollerFKU series
stainless steel
for heavy loads
solid
添加到收藏夹”
Compare this product
Characteristics
- Type
- guide
- Material
- stainless steel
- Other characteristics
- for heavy loads, solid
- Outer diameter
-
55 mm, 65 mm, 75 mm, 95 mm, 115 mm (2.165 in)
- Inside diameter
-
15 mm, 20 mm, 25 mm, 28 mm, 35 mm (0.59 in)
- Load capacity
-
Min.:3,900 N
Max.:190,000 N
Description

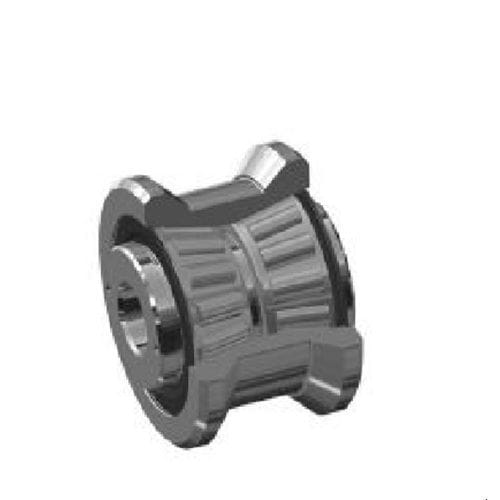

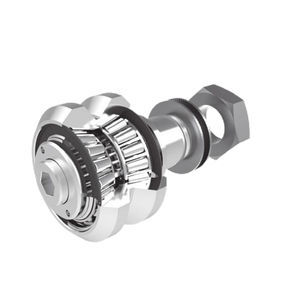

Guide wheel with tapered roller bearings. The sides of the race are convex with radius R = 400. • Viton seals for operating temperatures up to 120°C (suffix V) on request, not available for FKU 115. • On request the guide rollers can be supplied with external parts in stainless steel (suffix NX). Internal rolling elements in standard bearing steel • Pressure angle α for load calculation: 45° • Standard seals: material NBR, RS type
Catalogs
No catalogs are available for this product.
See all of Nadella Group‘s catalogs
