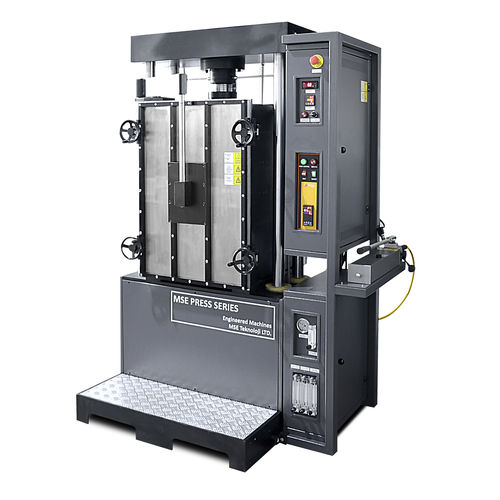

电动液压机

手动控制 成型 加入

它适用于高密度技术陶瓷材料，如SiC，Si3N4，BN，AL2O3-TIC / TIN，我们根据客户的要求开发，复合材料如CMC，MMC和粉末冶金烧结和烧结硬质金属材料的类似方法。在通过压缩可调节压力的压缩增加材料密度的同时，可以通过使用金属（TSE ISO 22068），陶瓷（TS ENV 13235，TS ISO 15490，TS EN 658-1，TS en来增加材料密度。820-1）在500-2200˚C的温度下烧结应用，并弹道铠装材料CEN 1063，EN 122，CEN-BR4，在国防工业中（MIL-A-12560，MIL-A-46100，MIL-DTL）-12560, MIL-D- , NIJ 0108.01 standards. These presses are produced in different models with capacities of 800C, 1200C, 1500C, 1800C and 2200C. STANDARD FEATURES •*** Maximum operating temperature: 1100 ° C •*** Maximum press area diameter: 250 mm •*** Stroke distance: 150 mm •*** Adjustable pressing force of 0-30 tons, •± 30 kg force accuracy, •Temperature accuracy ± 2 ° C, •Ability to read continuously applied pressure, press time and control, position control via a display, •The traceable press distance, •Electronic security system, •Emergency stop button, Siren warning system, •The ability to press the same product each time, •Vacuum and atmosphere controlled, •Mechanical vacuum device and digital indicator which can reach a vacuum level of 10-1 mbar, •PID controlled heating, •Cooled hydraulic system, •4-column, •Epoxy shippimer painted oven,
