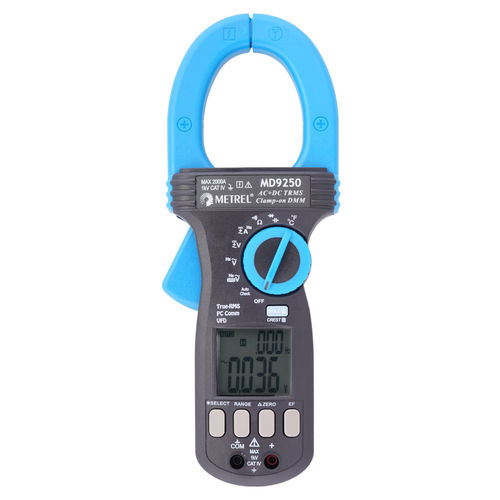

数字夹万用表MD 9250

可移植的 1000 V 2000年,一个

md9250是第一个钳位计，满足过电压类别CAT IV 1000v。MD 9250是专为单手操作而设计的高质量钳形仪表，内置测量功能;TRMS AC/DC(电流，电压)，电容，温度和全范围电阻使该仪器成为工业领域最苛刻应用的理想工具。大钳口能力(最大。直径55毫米)，允许AC/DC电流测量高达2000 A。高分辨率、高精度、2线液晶显示、快速数据采集和传输(通过光接口)、非接触式电压检测、自动检测功能是仪器的突出特点。•TRMS交流、直流电压测量;•TRMS交流、直流电流测量;•电容测量;•电阻测量; • Diode test; • Frequency measurement; • Electric field detection; • Continuity test (acoustic signalling); • Temperature measurement. Key features • Large jaws: for measuring on 55mm size conductors. • TRMS: accurate measurements on sinusoidal and non-sinusoidal signals. • VFD: feature makes the instrument capable of measuring the true values in accordance with frequency. • High current: 2000 A DC & AC clamp on measurement. • Lo-Z: AutoCheck® mode provides low (ramp-up) input impedance to drain ghost voltages. • Auto-check function: automatic detection of AC voltage, DC voltage or resistance. • Auto-ranging: user can switch between auto and manual ranging. • Transient protection: it protects user in case of lightning strike or switching surge up to 12 kV.
