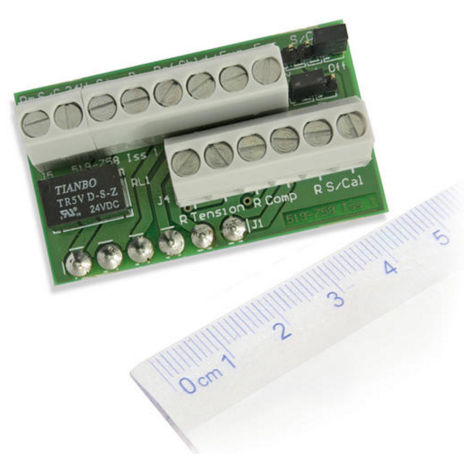

微型信号调整器SGABCM

负载细胞

安装方便,简单的螺丝到现有的测压元件连接器SGA车载螺丝接线端连接接受广泛的桥电阻使现场安装没有完成焊接设备稳定性高电阻(5 ppm /°C)安装固定的武器的半桥应变仪是单连通的桥梁to the BCM module via the screw terminals, no additional components are required The quarter bridge strain gauge circuit, together with its completion resistor can be wired for compression or tension (stretching) giving a positive output Small footprint: approximately 53x32mm, screws into existing J2 connector The SGABCM can be ordered in conjunction with an SGA/A or D or ordered separately for retro-fitting to customers’ existing SGAs Screw terminals are provided for a ‘Shunt Calibration’ (shunt cal) shunt resistor to be fitted to periodically check the integrity of the strain gauge(s), wiring and calibration ‘Remote Shunt Cal’ can be performed by energising a miniature 24V relay fitted to the BCM. Multiple SGAs in an installation can be shunt cal’d simultaneously
