模拟I / O模块M130t.

数字的 Modbus RTU. RS485.

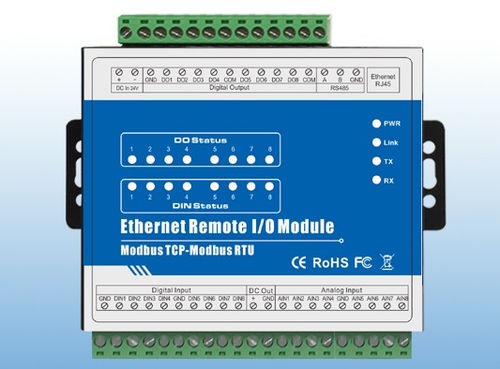

M130T以太网远程I / O模块提供多I / O，支持标准Modbus TCP，可以整合到SCADA，OPC服务器和其他自动化系统中。它是在苛刻的工业应用环境中工作的设计，广泛应用于各种工业自动化，安全监控系统，自动测量和控制系统。•嵌入式32位高性能微处理器MCU，内置看门狗;•电源12〜36VDC，具有过电压和相位反转保护;•嵌入式Web服务器，用于配置和管理;•支持Web实时监控和Web调试;•DO1支持PWM输出;•集成10 / 100M自适应以太网模块，支持Modbus TCP协议;•8光学隔离数字输入，支持MAX。10MHz高速脉冲计数器; • 4 digital output or relay output, supports 10Hz~300KHz high speed pulse output; • High sampling frequency and special filtering strategy to ensure reliability; • 1 RS485 Serial port, supports Modbus RTU/ASCII Master, can extend I/O modules; • Supports register mapping function and extend I/O inquiry strategy; • Provides 1 channel 12~36VDC power source output for external device, saving wiring cost; • LED instructions work status, with reset button to reset, easy on-site installation and commissioning; • Using metal shell, protection class IP30. Metal shell and system security isolation, especially suitable for industrial applications in the field; • Small size, L105 * W88 * H30mm, compatible wall installation and DIN35mm industrial rail installation.
