试点反应堆RV-12.

实验室 不锈钢 玻璃

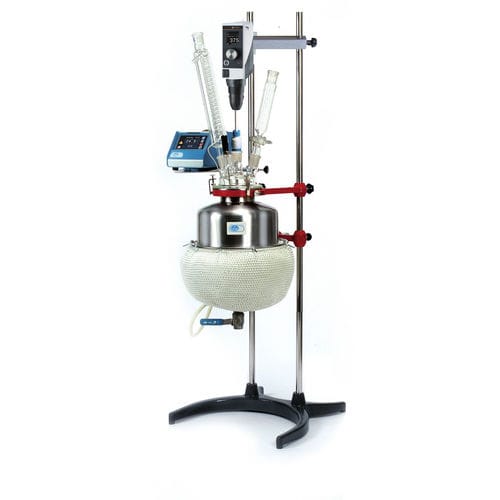

用于实验室“RV-12”的通用反应器适用于所有标准化的玻璃元件，嘴巴为100毫米。反应器容量：6或12升。应用通用反应堆适用于所有实验室和试点工厂的运营。配有标准口，可连接到DN100玻璃反应器的盖子。AISI 316不锈钢的反应器，容量为12升，排水龙头。标准设备1.标准支持。第No.111748部分2.不锈钢AISI 316中的反应器，容量：12升，排水龙头。外部尺寸：高度38cm x25cmØ。重量：4.5公斤零件No.111746或6升，排水龙头。外部尺寸：高度28cm x25cmØ。 Weight: 3 Kg. Part No. 1001726. 3. Clamp with support ring for the reactor. Part No. 1001747 + 1001974 for 10-20 litres. COMPLEMENTOS 4. Addition graduated funnel of 250 ml. PTFE frosted wrench 29/32. Part No. 1001795. 5. Frame for stirrer clamping. Part No. 1001770 6. HEI-Torque stirrer with adjustable speed. Part No. 5016041 7. PTFE stirrer guide. Part No. 1001788 8. Double effect Refrigerant “Dimroth”. 30 cm de length. Part No. 1001792 9. Electronic regulator ELECTEMP-TFT. Part No. 3000897 with connector for internal emperature control, if the heating mantle is used. 10. Support plate with bosshead for Electemp-TFT regulator. Part No. 1001750 11. Pt100 probe Part No. 1001749 400 mm length x Ø 4 mm, with connection cable to Electemp-TFT regulator. 12. 5 mouths cove type UK. Part No. 1001790 13. Ring holder with double bosshead for heating mantle. Part No. 1001751 14. Heating mantle with double heating element for temperatures up to 400°C. Power consumption 1400W. Part No. 3001752
