等离子切割表PLASMA3PM系列

对于钢铁

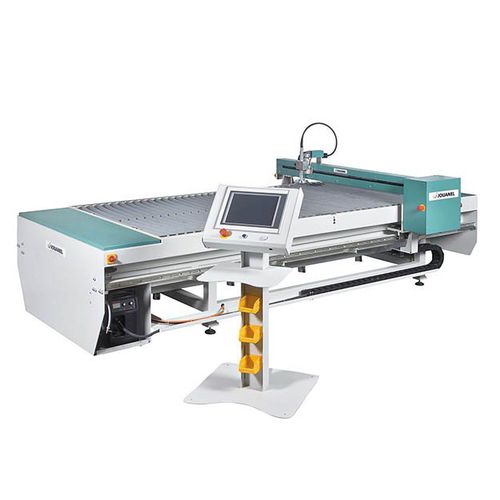

PLASMA TABLE 1500 X 3000 MM WITH POWER MAX 45 AMPERES Plasma cutting table, reference PLASMA3PM45, useful dimensions 1.50m x 3m, 45-amp Hypertherm plasma source, independent numerical control console of table with touch screen 15". Minimum cutting thickness 0.4mm, maximum cutting thickness: 12mm. Independent control console of table "Parking" positions outside the cutting area Automatic return to the breaking point (if flame break) 2 « brushless » motors of high accuracy Screen and electronic control unit in Plug & Play Various available software (optional) depending on business: ventilation, insulation, metal works... Single-piece table 1500 x 3000mm Movable numerical control console with color touch screen 15" 45-amp HYPERTHERM source 2 independent stop buttons, source and control console Plug access RJ45 for remote assistance USB connection for program loading Selection of Zero point (4 machine corners to the choice) Selection of the "parking" position of beam Setting of suction areas Tables of materials, thicknesses, cutting speed, assembly of torch Management of component stock Simulating the path Visualization of cut feeding on screen
