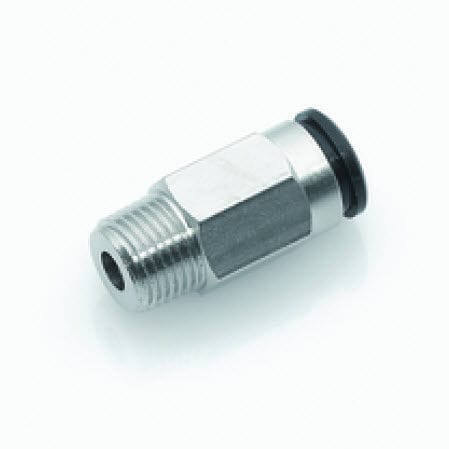

Pneumatic fittingipso 01 k series

push-in straight nickel-plated brass

ipso – Push-in fittings – Push-in system with stainless steel elastic clamp – Tube assembly with one movement – For tubes in various materials (PU, PA) – Small-scale and low weight – Silicon-free O-rings – O-ring in sealing channel — for rough surfaces – Modular, flexible structure – Hexagon socket for easy assembly Operating temperature -20°C bis +70°C -20°C bis +80°C For fittings with PVC seal For fittings with NBR O-rings Operating pressure Up to 16 bar Dependent on the pressure range of the tube used Vacuummax 98% Materials Brass housing, nickel-plated NBR seals Stainless steel clamp Black thrust ring CW614N and CW617N silicone-free mixture AIAI 316L plastic Thread Cyl. thread, DIN EN ISO 228 Con. thread, DIN EN 10226 (DIN 2999) Metr. thread, DIN ISO 261 Cylindrical with O-ring seal Medium Lubricated and non-lubricated compressed air Mediums which are compatible with the component materials Tubes For tubes in line with ISO 14743 Tolerances for external Ø 4 to 8: ±0.1 Tolerances for external Ø 10 to 14: ±0.15 (PU) 10 to 14: ±0.1 (PA) Recommended materials, PU, PA
