直流电机H17系列

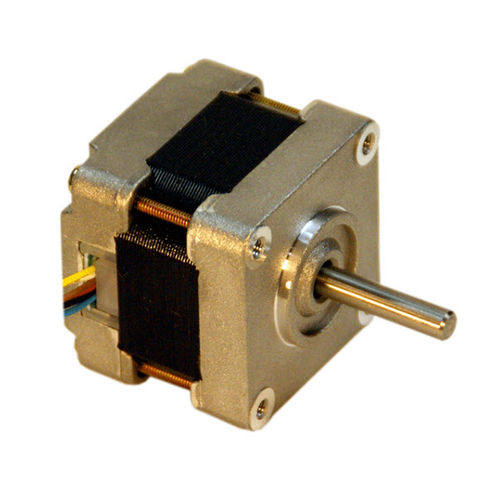

混合式步进 12 v NEMA 17

H17混合步进器规格:安装法兰:NEMA 17步进角度:1.8°步进每转:200定位精度:+ 5%最大。数量的阶段:4(单相)温度上升:70°C最大绝缘电阻:100欧姆500 vdc 1分钟绝缘强度:500年休假1分钟绝缘等级:B类铅丝数量:6导线:UL3265 AWG # 26操作环境温度:-10°C ~ + 50°C径向玩耍:0.03毫米马克斯在0.4千克负载轴向间隙:0.08毫米马克斯·赫斯特在0.5千克负载接触for other lead or phase configurations Unipolar Drives Motor phase winding current is switched in only one direction (typically to ground). • Simple low cost drive circuit • Requires center tap winding • Low Output Torque • 6 & 8 lead motors Bipolar Drives • Motor phase winding current is switched in both directions. • Higher cost drive circuit • Higher Output Torque • Approximately 1.4 X Unipolar Drive • 4, 6, & 8 lead motors • 8 Lead Motors are more efficient when used with a bipolar drive.
