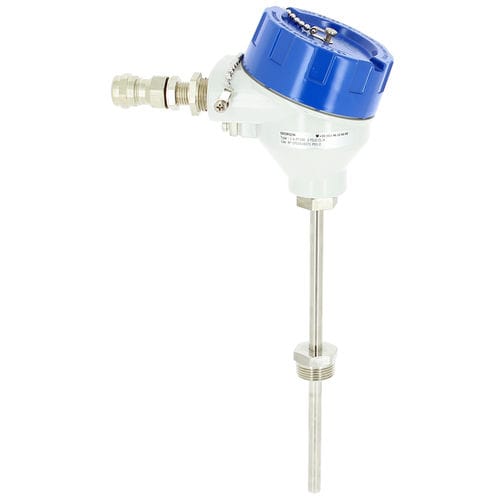

PT100温度探头S系列

RTD. 螺纹 热电偶输出

类型：RTD100，RTD1000，NI100，NI1000或热电偶终端头：DIN B，NA，膝关节，灌木，DAN，DAN V或没有电缆输出或特殊连接：½nPTM，½BSPP......选项：»使用TIXO1，2或3转换器»LCD显示器ATEX / IECEX分类EEX IA IIC T6，T5或T4 II 2 G EX D IIC T6功能螺纹温度探头根据编码（见背面）技术数据温度范围RTD PT100：根据IEC751的级别A级（标准）-200°C单±+ 600°C根据制造类型：Teflon电缆（PTFE）-50°C至+ 250°C光纤玻璃电缆-50°C至+ 400°C矿物绝缘镍导体 -200°C to +600°C Thermocouple type Single or double: T (Cu/CuNi), J (Fe/CuNi), K (NiCr/NiAl) Range: according to the type of thermocouple Tolerances according to class 1 DIN IEC 584.2 Other available on request Manufacturing Single RTD100 1x3 wires or Dual 2x3 wires (Standard) Single or double thermocouple Material sheath SS316 L 1.4404 Diameter 6 mm or 8 mm (Standard) Useful length (mm) 50, 100, 150, 200, 250, 300 Other available on request Process connection Thread 1/2”BSP or NPT male under head (Standard) Terminal head Type NA aluminium cast epoxy coated (Standard) Electric connection cable gland M20x1.5 IP68 -40 to + 200°C (without transmitter) Terminal Block Ceramic terminal block 3 or 6 poles (Standard) Or via transmitter (Option) Isolation resistance >100MOhm voltage 250V / Amb.T° (RTD100) 1000 MW/ test voltage 500 V DC (Thermocouple) Response time t0.5 = 3.5 s / t0.9 = 8 s In water 0.4 m/s according DIN EN 60751
