热电偶高温计TDXM

数字 RS485 内置的

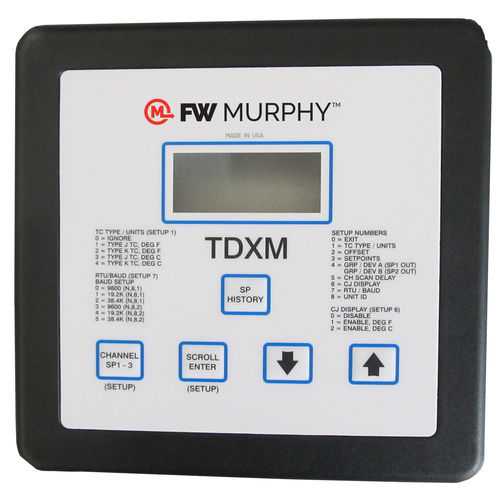

TDXM-DC现在为您提供一个内置电源的独特的可配置温度扫描仪/高温计。新的设计特点是一个7个字符，7段液晶显示窗口1/2英寸(13毫米)，易于阅读的字符。还位于面板上的膜键，便于配置。高度可靠和通用，TDXM-DC接受多达24种类型的J或K接地或不接地热电偶。每个通道有三个可调设定值SP1, SP2和SP3。SP1、SP2、SP3设定点对应SP1、SP2、SP3输出。此外，它还具有可选功能，可以监测和报警或关闭偏离平均温度高达两组(GRP/DEV;偏离平均水平)。一组是排气温度，另一组是承受温度。TDXM-DC能够通过内置的RS485串行通信端口与控制器、plc、计算机或SCADA (Supervisory Control & Data Acquisition)系统通信。 The TDXM-DC is available for 10 - 32 VDC systems. Features User Interface (Faceplate) The User Interface includes a numeric LCD and a five-button membrane keypad for readout and channel configuration. Thermocouple types can be selected and set points entered through a series of setup menus. Thermocouple Types Each of the 24 channels on the TDXM-DC can be configured as either J or K type thermocouples and temperature units can be selected as °F or °C readout for each channel. Unused channels can be set to Ignore and will not be seen in the display and will not cause fault trips.
