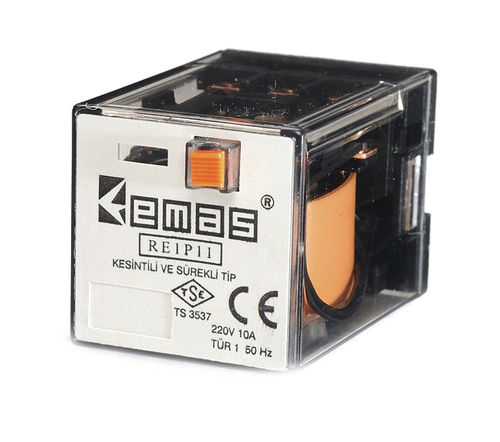

电压保护继电器Re系列

重新系列工业继电器› PA6.6基本头延迟车身›代码拼写的宽标签字段› 35毫米轨道Assmbly widh 8和11针插座›测试按钮和控制指示器›特殊的身体底面和接触技巧，并确保快速无故障的组件 ----------------------------------------------------------------------------------------------------------------- RS Series Relay an Sockets › Maximum product reliability width VO PA6.6 materials › Wide label field for code spelling › Perfect adaptation width industrial electronic relays › Special body desing and contact tips assuring quick and faultless assembly -------------------------------------------------------------------------------- Technical Information Mechanical Life : 10.000.000 operations min. Electrical Life : 100.000 operations min. Operating Temperature : min./max. °C -5/+40 Protection Degree : IP40 Operating Frequecy : Widthout 18.000 operations/hour at full load 1200 operations/hour Rated Operating Voltage Ue : 12, 24, 110 AC/DC and 230 V AC Nominal coil power : AC 1.5VA, DC 1W Reted Operating Current le : 10 A Max. swiching voltage : 250 V Max. swiching : 2500 VA Coil voltage range : (0.85-1.1)*Ue Range of use : AC15 Insulation resistance : 10 MΩ min. (500 V DC) Dielectrical strength : Between coil contact 2000 V open contact 1.500 V pole-pole 2.000 V AC Standard contact metarial : AgNi Weight : 80 gr. Standard TS EN 60947-5-1 VDE0660
