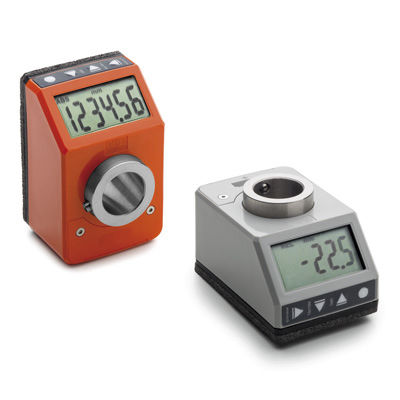

位置指示器DD52R-E.

digital 空心轴

基于基于（PA）技术的基础和壳体高抗性聚酰胺。黑基地。案例在以下颜色： - C2：RAL 2004橙色，光泽饰面。- C3：RAL 7035灰色，光泽饰面。可根据RAL 7021灰黑颜色（C1）提供。盖上完美密封的垫圈和AISI 304不锈钢UNI 6955型自攻螺钉，带有六凸起的套管TorxT06（由Textron Inc.的注册商标）。底座和壳体之间的超声波焊接防止分离并避免灰尘渗透。BOSS AISI 304不锈钢与Ø20mmH7铰孔孔，借助于AISI 304不锈钢GRUB螺杆，六角形插座和杯端UNI 5929-85，包括在供应中。窗口透明聚酰胺基（PA-T）技术聚合，在壳体上进行模制，具有完美的密封。耐溶剂，油脂，润滑脂和其他化学试剂（在清洁操作期间避免接触酒精）。 DISPLAY - 6-digit LCD of 12,0 mm height and special characters. The visualization parameters can be set and modified by the operator by means of appropriate keys: - values displayed in mm, inches or degrees - display of mode for use (absolute or incremental mode) - reading orientation (right or reverse). KEYBOARD Polyester membrane. Resistant to solvents, alcohol, acids, alkalis. INTERNAL GASKET O-ring front sealing in NBR synthetic rubber, between the case and the bushing. Brass bushing with double O-ring sealing in NBR synthetic rubber inside the rear cavity of the base (DD52R-E-SST-IP67). REAR GASKET Foam polyethylene, supplied.
