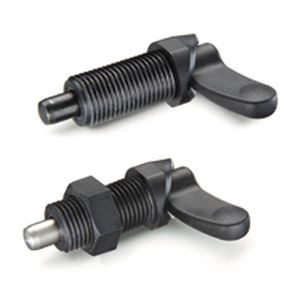

不锈钢柱塞索引PMT.200

technopolymer

螺纹体玻璃纤维增强聚酰胺(PA) SUPER-tecnopolymer为基础。柱塞黑色氧化硬化钢或符合美国钢铁协会的303不锈钢。建议公差H7孔匹配。基于杆自动润滑的玻璃纤维增强聚酰胺(PA) technopolymer,黑色的颜色,喷砂面。春天符合美国钢铁协会的302不锈钢。锁紧螺母(NTT)玻璃纤维增强聚酰胺(PA) SUPER-tecnopolymer为基础。也可用附件(见表NTT)单独出售。标准执行- PMT.200-A:黑色氧化钢柱塞,没有锁定螺母。- PMT.200-AK:黑色氧化钢柱塞,锁紧螺母(不提供组装)。- PMT.200-SST-A:符合美国钢铁协会的303不锈钢柱塞,没有锁紧螺帽,没有磁性。 - PMT.200-SST-AK: AISI 303 stainless steel plunger, with locking nut (supplied not assembled), not magnetic. FEATURES AND APPLICATIONS - PMT.200 lever indexing plungers are used when the plunger must be retracted quickly. - By rotating the lifting lever by 180°, the plunger stops in the retracted position in which the lever is kept by a notch. - High Lightness and high mechanical resistance of the product. - Anticorrosive material: suitable even in the presence of liquid or humidity (PMT.200-SST). - The SUPER-technopolymer threaded body of the plunger offers a low friction factor to the plunger stroke; no lubricating maintenance is required. ASSEMBLY INSTRUCTIONS Make sure that no machining residues are left on the threaded hole for the assembly of PMT.200 indexing plunger (see fig. 1). Do not make any chamfering in the hole (see fig. 2).
