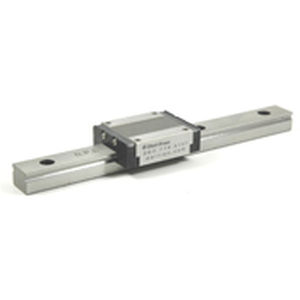

带循环球架的直线导轨bsg25 - 1 - 280

紧凑的 精度 钢

循环球滑指南(RBSG)家庭:BSG25模型:BSG25 - 1 - 280价格:218.00美元除非另有说明所有尺寸在毫米总旅行下面是基于1运输/铁路运输尺寸:毫米(在)H: 25 (0.984) B: 46 L2 (1.811): 62 (2.441) L1: 55.7 (2.193) W: 4 (0.157) P1: 38 (1.496) P2: 38 (1.496) S1:M4 e1: 6 (0.236) L3: 45.7 (1.799) W2: - S2: - e2: - b: 17.5(0.689)基本负载评级:kgf(磅力)动态C: 700(1544)静态有限公司:1000(2205)导轨的维度:毫米(在)P: 60 (2.362) H1: 15 (0.591) C: 20 (0.788) B1: 10 (0.394) B2: - W1: 13 (0.512) d x G h: 6 x 9.5 x 8.5(。236 x .374 x .335) S3 N类型:—N: 20(0.788)重量:kgs(磅)车厢—Lb (kg): 0.23(0.507)导轨—Lb/ft (kg/m): 2.14 (1.438: mm (in)最大长度:1900 (74.8)
