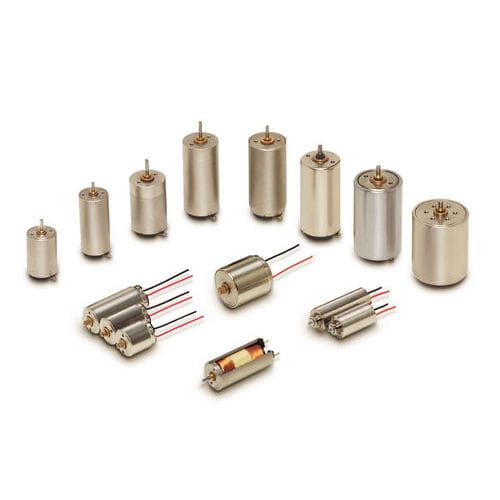

DC motorSC24-32 series

brushed 24V 12V

Characteristics

AC/DC

DC

Type

brushed

Voltage

24V, 12V, 18V, 9V

Configuration

permanent magnet, coreless

Applications

with built-in encoder

Other characteristics

with sleeve bearing

Torque

Min.:0.0059 Nm (0.0044 ft.lb)

Max.:0.0616 Nm (0.0454 ft.lb)

0.0069 Nm, 0.0098 Nm, 0.0128 Nm (0.0051 ft.lb)

Power

Min.:5.12 W (0.007 hp)

Max.:15.5 W (0.021 hp)

Rotational speed

Min.:7,630 rpm (47,940.7 rad.min-1)

Max.:10,060 rpm (63,208.84 rad.min-1)

Current

Min.:21 mA

Max.:49,330 mA

Diameter

24 mm (0.94 in)
