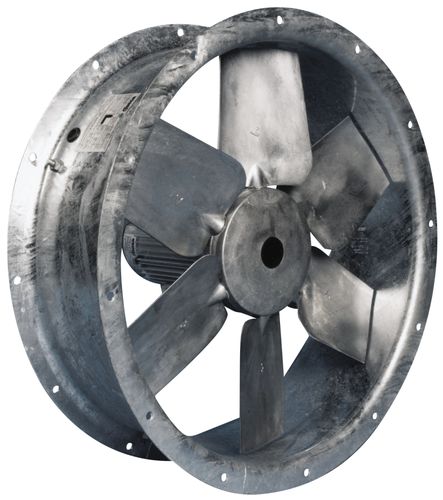

轴向风扇Helione

萃取 通风 IP55

Helione - 轴向风扇符合标记。F200类（200°C- 120分钟）和F400（400°C - 120分钟）根据EN 12101-3。停车场，商业和工业场所的范围很大。多个配件，更容易安装。标准气流范围高达70,000 m3/h。标准范围从Ø500到Ø1250毫米，气流速率从5000到72,000 m3/h，压力值从100到500pa。1速或2速电动机（Dahlander 4/8极耦合）。boss型电动机，4杆或4/8极，IP55，隔离级F级。工作温度：-20°C / +50°C。具有多个铝制叶片的风扇，安装在铝制芯上。根据操作点确定倾斜角。 Each blade is X-rayed prior to assembly to check material quality. Shells formed using a metal plate with curved sides, inserted and drilled for connections, continuous welds and hot-galvanised after production. Short shell as standard / optional long shell. Motor mounting arms hot-galvanised for strong corrosion resistance. Accessories available: protective grilles, flexible sleeves, counter-flanges, square plates for mounting on walls, anti-vibration studs, frame feet, backdraft damper, electrical accessories,…
